Download 1 // "BlockBolt3.pov"

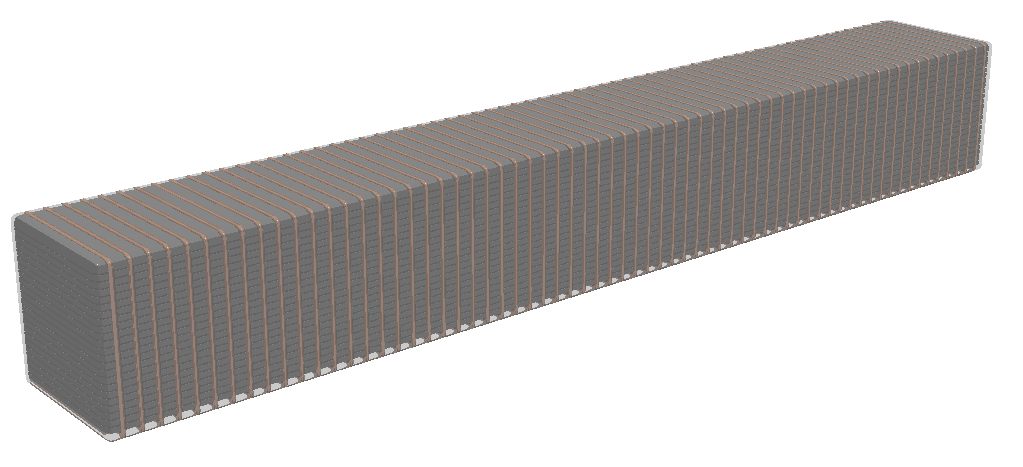

2 // Block of laminations, windings, and coating
3 // KHL 2017-Dec-29
4 //
5 #version 3.7;
6 global_settings{ assumed_gamma 1.0 }
7
8 #default{ finish{ ambient 0.1 diffuse 0.9 }}
9 #include "colors.inc"
10 #include "textures.inc"
11
12 #declare COIL=1 ; // draw the coil
13 #declare CORE=1 ; // draw the core
14 #declare DIAM=1 ; // draw the diamond coating
15
16 // camera setup -------------------------------------------------------------
17 #declare Camera_Location = <4.5 , 2.0 ,-4.0> ; // diagonal view
18 #declare Camera_Look_At = < 0.05 , 0.00 , -0.35> ;
19 #declare Camera_Angle = 32 ;
20
21 // camera and lights -------------------------------------------------------
22 camera{ // ultra_wide_angle // orthographic
23 location Camera_Location
24 right x*image_width/image_height
25 angle Camera_Angle
26 look_at Camera_Look_At
27 }
28
29 // sun and "camera flash" -----
30 // light_source{< 500,1500,-2500> color rgb<1,1,1>*0.9} // sun
31 light_source{< 500,1500,-250> color rgb<1,1,1>*0.9} // sun
32 light_source{ Camera_Location color rgb<0.9,0.9,1>*0.0 shadowless}// flash
33
34 sky_sphere{ pigment{ color rgb<1,1,1> } }
35
36 #include "math.inc"
37 #include "shapes3.inc"
38
39 #local BWR = 0.008 ; // Wire diameter
40 #local BWX = 0.50 ; // rectangular loop depth: min 2*WR (pitch)
41 #local BWY = 0.50 ; // rectangular loop height
42 #local BWZ = 0.06 ; // loop spacing
43 #local BWL = 66 ; // number of loops
44 #local LLEN = 0.5*BWL*BWZ ;
45
46 #local LAM = 0.017 ; // lamination thickness
47 #local LAMG = 0.005 ; // lamination gap
48 #local DY = LAM+LAMG ; // lamination stack
49
50 #local BWT = 0.5*BWZ*(BWL-0) ; // end of magnet core (extended)
51
52 // Winding_Loop macro: A rectangular coil of wire ---------------------------
53
54 #macro Winding_Loop( WR_ , // 0.03; // Wire radius
55 WX_ , // 0.50; // X width
56 WY_ , // 0.20; // Y width
57 WZ_ , // 0.10; // Loop spacing
58 Loops_ , // 20 ;
59 ) // end of loop parameters
60
61 #local WR = WR_ ; // Wire radius
62 #local WZ = WZ_ ; // Loop Z spacing: min 2*WR (pitch)
63 #local WX = 0.5*WX_+WR_ ; // Loop X width
64 #local WY = 0.5*WY_+WR_ ; // Loop Y width
65 #local Loops = Loops_ ; // Integer
66
67 #local RectLoop =
68 union{
69 sphere{ < WX, WY,0>, WR }
70 cylinder{ < WX, WY,0>,< WX,-WY,0>, WR }
71 sphere{ < WX,-WY,0>, WR }
72 cylinder{ < WX,-WY,0>,<-WX,-WY,0>, WR }
73 sphere{ <-WX,-WY,0>, WR }
74 cylinder{ <-WX,-WY,0>,<-WX, WY,0>, WR }
75 sphere{ <-WX, WY,0>, WR }
76 cylinder{ <-WX, WY,0>,< WX, WY,0>, WR }
77 }
78 // end of RectLoop union ---
79
80 // Stack of Nr loops in Z direction ------------------------------
81 union{
82 #local NZ = 0.5*(Loops-1.0)*WZ ;
83 #local DZ = -NZ; // start
84 #while (DZ <= NZ ) // loop
85 object{ RectLoop translate<0, 0, DZ > }
86 #local DZ = DZ + WZ; // next DZ
87 #end // end of DZ loop
88
89 }
90
91 #end // --- end of Winding_Loop macro --------------------------------------
92
93 // NOW, DRAW THE COIL
94
95 // Winding loop group instance ----------------------------------
96
97 #if( COIL )
98 object{ Winding_Loop( BWR, // Wire radius
99 BWX, // rectangular loop X width
100 BWY, // rectangular loop Y width
101 BWZ, // loop spacing: min 2*WR (pitch)
102 BWL // number of loops
103 )
104
105 // approximate copper color
106 texture{ pigment{ color rgb< 0.85, 0.37, 0.15>*0.59 }
107 finish { phong 1.0 specular 0.3 reflection{ 0.25 metallic 0.5 } }
108 } // end of copper texture
109
110 // translate and rotate
111 // rotate<0,0,0>
112 // translate<0,0,0>
113 } // end of Winding_Loop object instance
114
115 #end // COIL
116 // End of Winding Loop group instance ----------
117
118
119 // laminated iron core instance ---------------------------
120 #if( CORE )
121
122 object{
123 union {
124 #local WX= 0.5*BWX ;
125 #local WY= 0.5*BWY ;
126 #local LY=0.5*DY-WY;
127 #local LAY = LAM/2 ;
128
129 #while ( LY < WY ) // loop
130 box{ <-WX,-LAY,-LLEN>, <WX,LAY,LLEN> translate<0,LY,0> }
131 #local LY = LY + DY ;
132 #end // end LY loop
133 }
134
135 // approximate iron color
136 texture{ pigment{ color rgb<1,1,1>*0.3 }
137 finish{ phong 0.0 specular 0.2 }
138 } // end of iron texture
139 }
140 #end // CORE
141 // end of iron core instance -------------------
142
143 // amorphous diamond coating instance ----------------------
144 #if( DIAM )
145
146 #local BMX = -0.5*BWX ;
147 #local BMY = -0.5*BWY ;
148 #local BMZ = -LLEN ;
149 #local BPX = 0.5*BWX ;
150 #local BPY = 0.5*BWY ;
151 #local BPZ = LLEN ;
152 #local BR = 3.0*BWR ;
153
154 merge{
155 box { <BMX-BR,BMY,BMZ>,<BPX+BR,BPY,BPZ> material{M_Glass} }
156 box { <BMX,BMY-BR,BMZ>,<BPX,BPY+BR,BPZ> material{M_Glass} }
157 box { <BMX,BMY,BMZ-BR>,<BPX,BPY,BPZ+BR> material{M_Glass} }
158 cylinder{ <BMX,BMY,BMZ>,<BPX,BMY,BMZ>,BR material{M_Glass} }
159 cylinder{ <BMX,BMY,BPZ>,<BPX,BMY,BPZ>,BR material{M_Glass} }
160 cylinder{ <BMX,BPY,BMZ>,<BPX,BPY,BMZ>,BR material{M_Glass} }
161 cylinder{ <BMX,BPY,BPZ>,<BPX,BPY,BPZ>,BR material{M_Glass} }
162 cylinder{ <BMX,BMY,BMZ>,<BMX,BPY,BMZ>,BR material{M_Glass} }
163 cylinder{ <BMX,BMY,BPZ>,<BMX,BPY,BPZ>,BR material{M_Glass} }
164 cylinder{ <BPX,BMY,BMZ>,<BPX,BPY,BMZ>,BR material{M_Glass} }
165 cylinder{ <BPX,BMY,BPZ>,<BPX,BPY,BPZ>,BR material{M_Glass} }
166 cylinder{ <BMX,BMY,BMZ>,<BMX,BMY,BPZ>,BR material{M_Glass} }
167 cylinder{ <BPX,BMY,BMZ>,<BPX,BMY,BPZ>,BR material{M_Glass} }
168 cylinder{ <BMX,BPY,BMZ>,<BMX,BPY,BPZ>,BR material{M_Glass} }
169 cylinder{ <BPX,BPY,BMZ>,<BPX,BPY,BPZ>,BR material{M_Glass} }
170 sphere{ <BMX,BMY,BMZ>, BR material{M_Glass} }
171 sphere{ <BMX,BMY,BPZ>, BR material{M_Glass} }
172 sphere{ <BMX,BPY,BMZ>, BR material{M_Glass} }
173 sphere{ <BMX,BPY,BPZ>, BR material{M_Glass} }
174 sphere{ <BPX,BMY,BMZ>, BR material{M_Glass} }
175 sphere{ <BPX,BMY,BPZ>, BR material{M_Glass} }
176 sphere{ <BPX,BPY,BMZ>, BR material{M_Glass} }
177 sphere{ <BPX,BPY,BPZ>, BR material{M_Glass} }
178 }
179
180 #end // DIAM
181 // end of amorphous diamond coating instance --------------
182
183 // End of .pov file ----------------------------
